Single relay - REL-MR- 24DC/21-21 - 2961192
- Produttore:
- PHOENIX CONTACT
- Prezzo (IVA esclusa)
- € 4.46
- Codice Nuova Elva
- 2961192
- Codice produttore
- 2961192
- Disponibilità
- 4 in stock

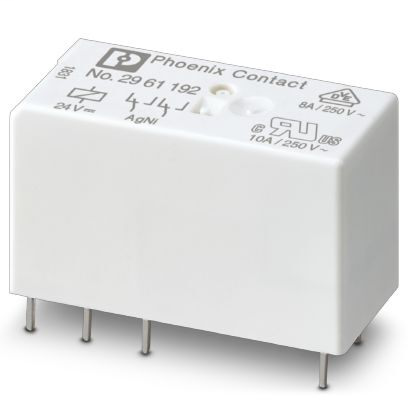

Plug-in miniature power relay, with power contact, 2 PDTs, input voltage 24 V DC
Features
RT III-proof (wash-proof)
Switching current of up to 8 A
VDE Zeichengenehmigung
EAC
PRS
GL
UL Recognized
cUL Recognized
Specifications
| Depth | 15.7 mm |
|---|---|
| Height | 29 mm |
| Width | 12.7 mm |
Dimensions | |
| Width | 12.7 mm |
| Height | 29 mm |
| Depth | 15.7 mm |
Contact side | |
| Contact type | 2 PDT |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (at 10 mA) |
| Min. switching current | 10 mA (At 5 V) |
| Maximum inrush current | 25 A (20 ms) |
| Limiting continuous current | 8 A |
| Interrupting rating (ohmic load) max. | 190 W (at 24 V DC) |
| Interrupting rating (ohmic load) max. | 85 W (at 48 V DC) |
| Interrupting rating (ohmic load) max. | 60 W (at 60 V DC) |
| Interrupting rating (ohmic load) max. | 44 W (at 110 V DC) |
| Interrupting rating (ohmic load) max. | 60 W (at 220 V DC) |
| Interrupting rating (ohmic load) max. | 2000 VA (for 250 V AC) |
| Switching capacity | 2 A (at 24 V, DC13) |
| Switching capacity | 0.2 A (at 250 V, DC13) |
| Switching capacity | 3 A (at 24 V, AC15) |
| Switching capacity | 3 A (at 120 V, AC15) |
| Switching capacity | 3 A (at 250 V, AC15) |
| Motor load according to UL 508 | 1/4 HP, 120 V AC |
| Motor load according to UL 508 | 1/2 HP, 240 V AC |
Coil side | |
| Typical release time | 3 ms |
| Coil resistance | 1440 Ω ±10 % (at 20 °C) |
| Power dissipation for nominal condition | 0.41 W |
| Nominal input voltage UN | 24 V DC |
| Typical input current at UN | 17 mA |
| Typical response time | 7 ms |
Standards and Regulations | |
| Connection in acc. with standard | CUL |
| Standards/regulations | IEC 60664 |
| Standards/regulations | EN 50178 |
| Standards/regulations | EN 61810-1 |
| Insulation | Basic insulation |
| Pollution degree | 3 |
| Overvoltage category | III |
Ambient conditions | |
| Ambient temperature (operation) | -40 °C - 85 °C |
| Ambient temperature (storage/transport) | -40 °C - 85 °C |
| Degree of protection | RT III |
Connection data | |
| Connection method | Solder connection |
Environmental Product Compliance | |
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
