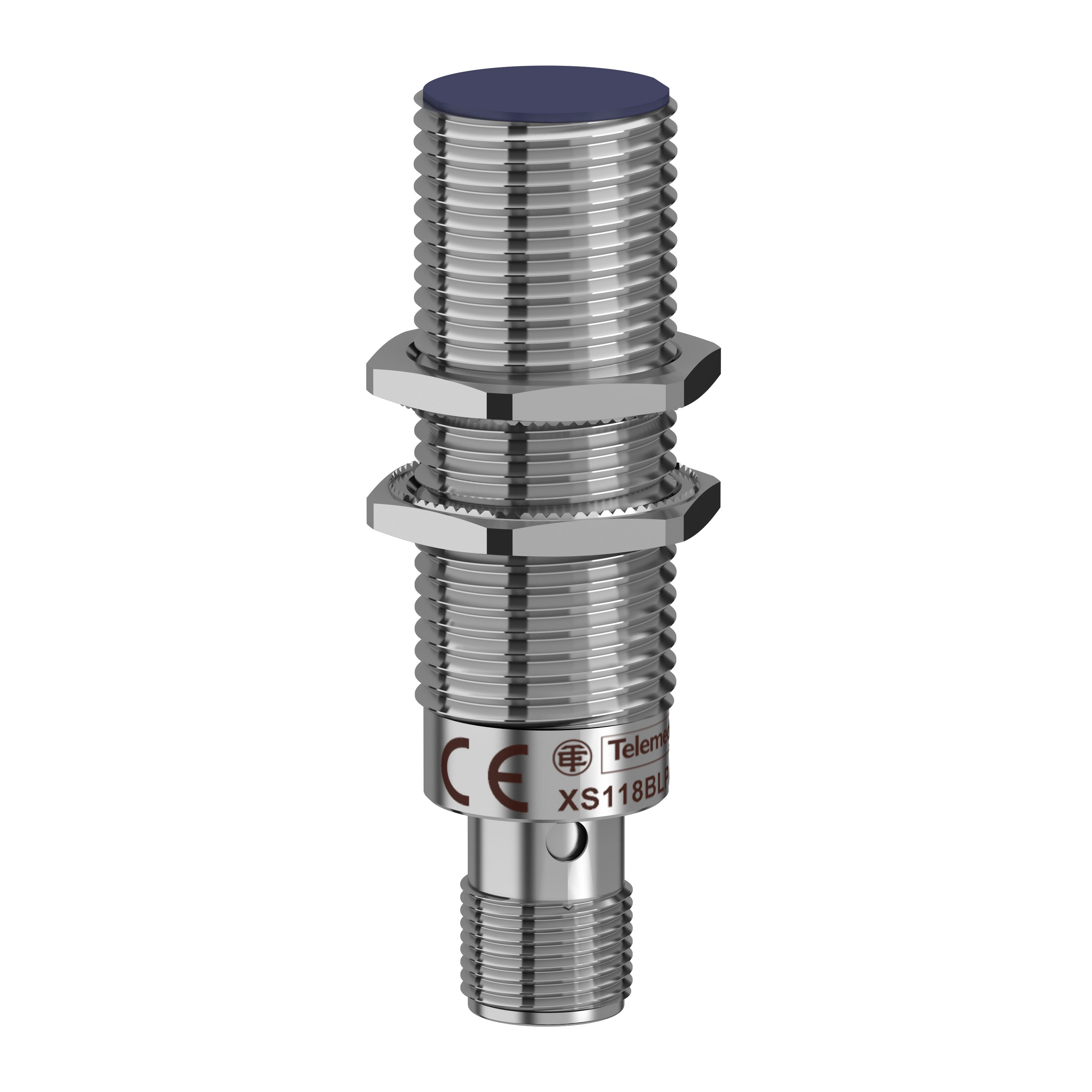

inductive sensor XS1 M18, L64mm, brass, Sn5mm, 12..24VDC, M12

Produttore:
Schneider Electric
Schneider electric

0e7a57072dd6a64b52750ed9f08d87f10604be7e medium
Prezzo (IVA esclusa)
€ 14.71
Codice Nuova Elva
XS118BLPAM12
Codice produttore
XS118BLPAM12
Disponibilità
62 in stock

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable metal sensor. Diameter 18mm, threaded M18 x 1. It features a metal cylindrical boby a M12 connector. It has a sensing distance of 5mm. Three-wire, DC supply, 12V to 24V, NO function, PNP solid-state output.

Specifications

CertificationsCSA
Current10 mA
Enclosure MaterialNickel Plated Brass
Length64 mm
MaterialMetal
Net Weight0.035 kg
Storage Temperature-40-85 °C
Warranty Length18 months

Specifications

Electrical Connectionmale connector M12, 4 pins
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Series Namegeneral purpose
Body Typefixed
[Sn] Nominal Sensing Distance5 mm
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 200 mA overload and short-circuit protection
Sensor Designcylindrical M18
Enclosure MaterialNickel Plated Brass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output TypePNP
Discrete Output Function1 NO
Type Of Output Signaldiscrete
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS1
Size64 mm
Wiring Technique3-wire

Contractual warranty

Warranty18 months

Complementary

Iso ThreadM18 x 1
Materialmetal
Net Weight0.035 kg
Switching Frequency<= 1200 Hz
Differential Travel1...15% of Sr
Maximum Delay Recovery0.3 ms
Maximum Delay First Up15 ms
Supply Voltage Limits10-36 V DC
Detector Flush Mounting Acceptanceflush mountable
Detection Facefrontal
Front MaterialPBT
Current Consumption<= 10 mA no-load
Output Circuit TypeDC
Maximum Delay Response0.1 ms
Status Ledoutput state 1 LED yellow)
Operating Zone0-4 mm
Maximum Voltage Drop<2 V closed)
Threaded Length43 mm
MarkingCE
Length64 mm

Offer Sustainability

Rohs Exemption InformationYes
Mercury FreeYes
Environmental DisclosureENVPEP111006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1110045
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Environment

Product CertificationsUL || CSA
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Shock Resistance50 gn 11 ms IEC 60068-2-27
Ambient Air Temperature For Storage-40-85 °C
