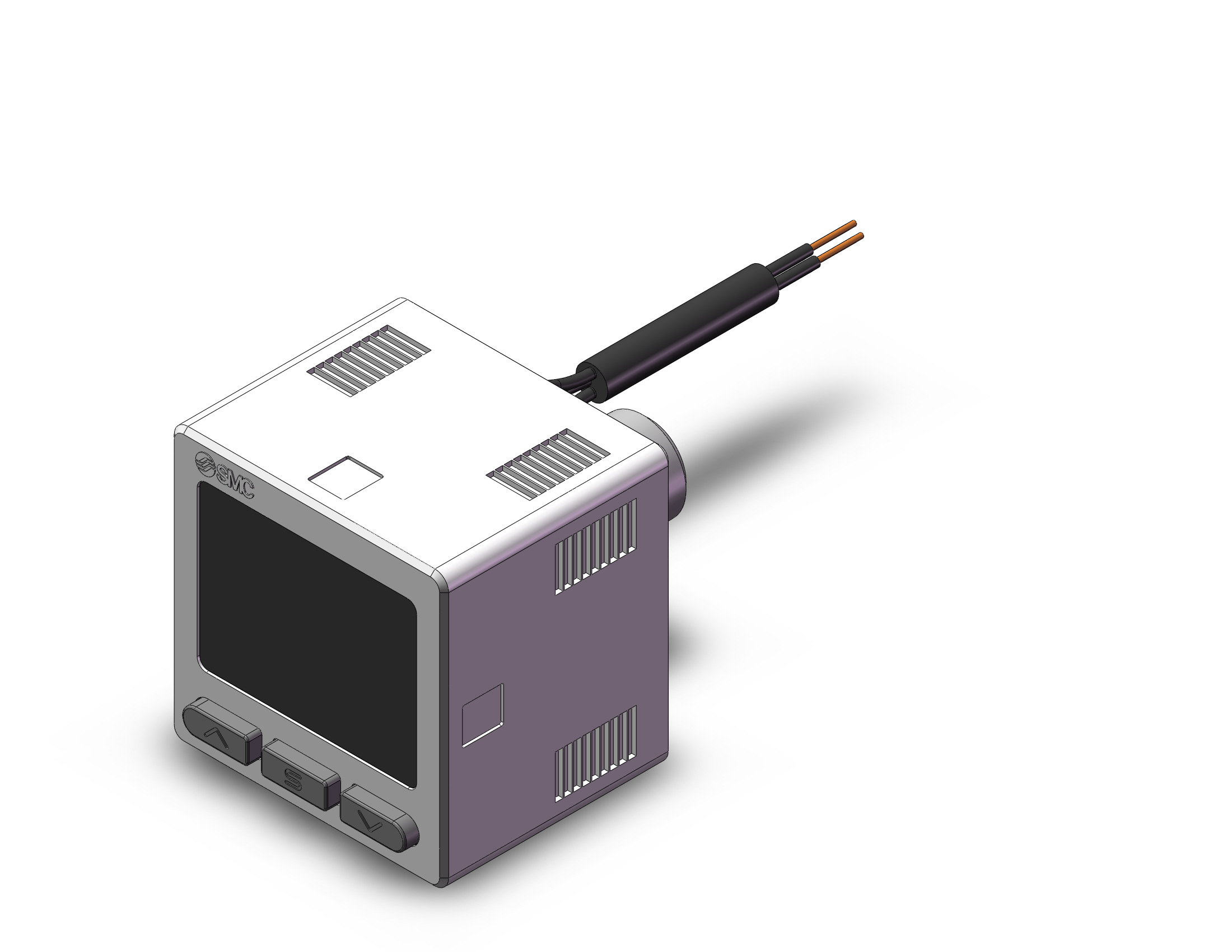

ISE20, Digital Pressure Sensor, 3 Screen 1 Output, IP40, ISE20-P-01-L
- Produttore:
- SMC
- Prezzo (IVA esclusa)
- € 74.86
- Codice Nuova Elva
- ISE20P01L
- Codice produttore
- ISE20-P-01-L
- Disponibilità
- 1 in stock
ISE20 is a digital pressure sensor with an informative, easy to read 3 screen, 3 color display. The main screen shows the instantaneous reading in red or green, while two sub-screens can display the setting label and its numeric value in orange. ISE20 saves energy with only 25mA current consumption. Further, the switch output responds within 1.5ms once the set pressure value is reached. ISE20 is UL/CSA and RoHS compliant, with an IP40 enclosure rating.
Features
Lowest energy consumption of any ISE, at 25mA
1 switch output (NPN or PNP)
Bracket or panel Mounting options
Specifications
| Height | 30 mm |
|---|---|
| Length | 150 mm |
| Weight | 67 g |
| Width | 40 mm |
Specifications | |
| 3 setting modes | 3-step, simple, function selection |
| 5 pressure units | MPa, kPa, kgf/cm2, bar, psi |
| Port sizes | M5 (female), 1/8 Rc or NPT (male), One-touch fitting (straight, elbow) ( 4 or 6mm, 1/4 ) |
| Weight | 67 g |
| Length | 150 mm |
| Width | 40 mm |
| Height | 30 mm |
