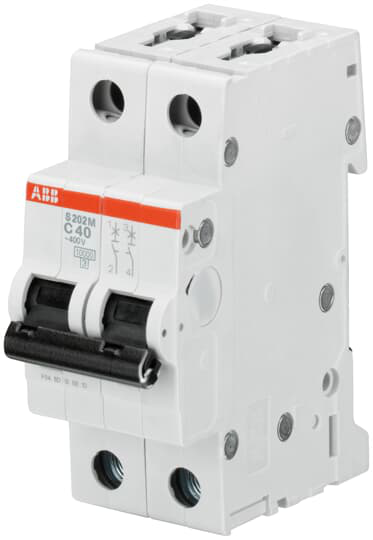

Miniature Circuit Breaker - S200M - 2P - C - 10 A

Produttore:
ABB
Abb

78e9070df0ae6a072b92e572a24d79f0a00511ab medium
Codice Nuova Elva
S550284
Codice produttore
2CDS272001R0104
Disponibilità
Invia RdO

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.

Specifications

Technical

StandardsIEC/EN 60898-1IEC/EN 60947-2
Number of Poles2
Rated Frequency (f)50 / 60 Hz
Rated Short-Circuit Capacity (Icn)(230 V AC) 10 kA(400 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(230 V AC) 25 kA(400 V AC) 15 kA(440 V AC) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics)(230 V AC) 7.5 kA
Energy Limiting Class3
Overvoltage CategoryIII
Pollution Degree3
Rated Impulse Withstand Voltage (Uimp)4 kVat 2000 m 5 kVat Sea Level 6.2 kV
Dielectric Test Voltage50/60 Hz, 1 min: 2 kV
Housing MaterialInsulation Group II, RAL 7035
Number of Protected Poles2
Actuator MaterialInsulation Group II, Black, Sealable
Actuator MarkingI / O
Contact Position IndicationRed ON / Green OFF
Degree of ProtectionIP20Enclosure with Cover IP40
Electrical Endurance20000 AC cycle
Mechanical Endurance (Nendu)20000 cycle
Terminal TypeScrew Terminals
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Connecting CapacityBusbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
Tightening Torque2.8 N·m
Tripping CharacteristicC
Recommended Screw DriverPozidriv 2
Mounting on DIN RailTH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting PositionAny
Built-In Depth (t2)69 mm
Installation Sizeacc. to DIN 43880 1
Power Supply ConnectionArbitrary
Rated Current (In)10 A
Rated Operational Voltageacc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 440 V AC
Rated Voltage (Ur)400 V AC
Power Loss4.2 Wat Rated Operating Conditions per Pole 2.1 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 440 V
Operational VoltageMaximum (Incl. Tolerance) 125 V DCMaximum (Incl. Tolerance) 440 V ACMinimum 12 V ACMinimum 12 V DC

Environmental

Ambient Air TemperatureOperation -25 ... +55 °CStorage -40 ... +70 °C
Reference Ambient Air Temperature30 °C
Resistance to Shock acc. to IEC 60068-2-2725g / 2 shocks / 13 ms
Resistance to Vibrations acc. to IEC 60068-2-65g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Environmental Conditions28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
RoHS StatusFollowing EU Directive 2011/65/EU

Technical UL/CSA

Maximum Operating Voltage UL/CSA125 V DC480Y/277 V AC
Connecting Capacity UL/CSABusbar 14-8 AWGConductor 14-4 AWG
Tightening Torque UL/CSA18 in·lb
Interrupting Rating acc. to UL1077(125 V DC) 10 kA(277 V AC) 6 kA(480Y / 277 V AC) 6 kA

Dimensions

Product Net Width35 mm
Product Net Depth / Length69 mm
Product Net Height88 mm
Product Net Weight0.25 kg

Container Information

Package Level 1 Unitscarton 5 piece
Package Level 1 Width92 mm
Package Level 1 Depth / Length183 mm
Package Level 1 Height80 mm
Package Level 1 Gross Weight1.3 kg
Package Level 1 EAN4016779605656
Package Level 2 Unitscarton 60 piece
Package Level 2 Width275 mm
Package Level 2 Depth / Length400 mm
Package Level 2 Height210 mm
Package Level 2 Gross Weight15.4 kg
Package Level 2 EAN4016779977197

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85362010
E-Number (Sweden)2101225
E-Number (Finland)3210797

Classifications

Object Classification CodeF
ETIM 8EC000042 - Miniature circuit breaker (MCB)
eClassV11.0 : 27141901
