EMERGENCY STOP CE4T-10R-01
- Produttore:
- ABB
- Codice Nuova Elva
- ER6940
- Codice produttore
- 1SFA619550R1041
- Disponibilità
- Invia RdO

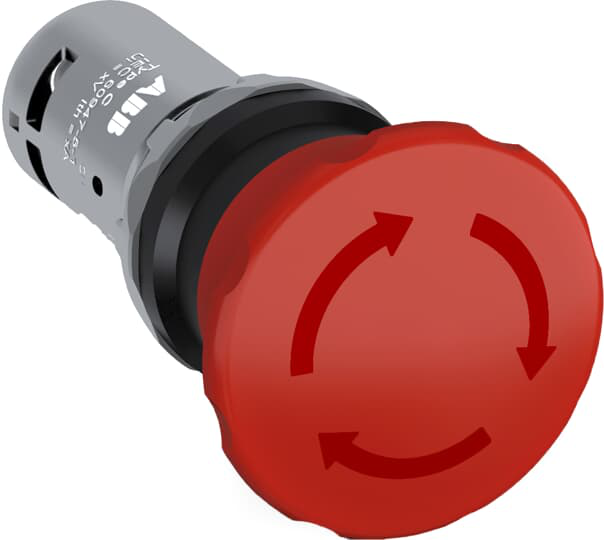

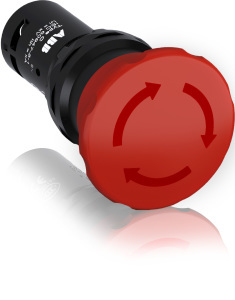

Compact Emergency Stop - Twist release - Mushroom 40mm - Red - Non-illuminated - Black plastic - 1NC
Specifications
Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Dimensions | |
| Product Net Width | 0.04 m |
| Product Net Height | 0.04 m |
| Product Net Depth / Length | 0.073 m |
| Product Net Weight | 0.034 kg |
Technical | |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Twist release |
| Number of Auxiliary Contacts NC | 1 |
| Degree of Protection | Front IP66Front IP67Front IP69KTerminals IP20 |
| Enclosure Type NEMA | Type1Type12Type13Type3RType4Type4X |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 ... 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A(125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 1 A |
| Mechanical Durability | 0.5 million |
| Ambient Air Temperature | Operation -25 ... +70 °CStorage -40 ... +85 °C |
| Color | Red |
| Actuator Type | Mushroom 40 mm |
| Bezel Material | n/a |
Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 0626 5 |
| RoHS Information | 2CMT2019-005802 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.1 m |
| Package Level 1 Depth / Length | 0.1 m |
| Package Level 1 Height | 0.04 m |
| Package Level 1 Gross Weight | 0.036 kg |
| Package Level 1 EAN | 7320500260715 |
Classifications | |
| Object Classification Code | S |
| ETIM 4 | EC002024 - Accessories for control circuit devices |
| ETIM 5 | EC002034 - Emergency stop complete |
| eClass | V11.0 : 27371244 |
| E-Number (Finland) | 2313536 |
| E-Number (Norway) | 4372707 |
| E-Number (Sweden) | 3711514 |
