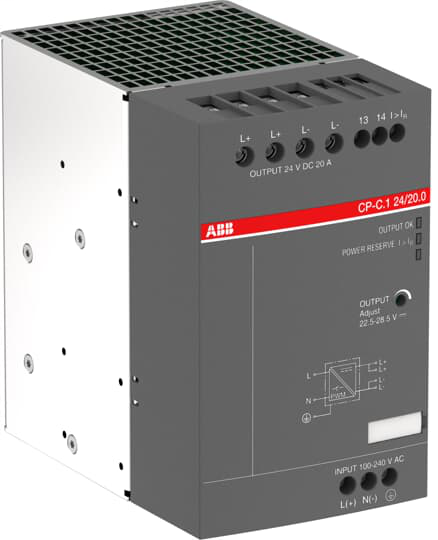

CP-C.1 24/20.0 Power supply In:100-240VAC/90-300VDC Out:DC 24V/20A
- Produttore:
- ABB
- Prezzo (IVA esclusa)
- € 615.87
- Codice Nuova Elva
- 1SVR360763R1001
- Codice produttore
- 1SVR360763R1001
- Disponibilità
- Tempo di consegna standard: 5 giorni
The CP-C.1 24/20.0 is a power supply from the CP-C.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 30 % and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories
Specifications
Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044090 |
Dimensions | |
| Product Net Width | 82 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth / Length | 136 mm |
| Product Net Weight | 1.57 kg |
Container Information | |
| Package Level 1 EAN | 4013614503832 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 168 mm |
| Package Level 1 Height | 160 mm |
| Package Level 1 Gross Weight | 1.7 kg |
Technical | |
| Function | Switch mode power supply |
| Number of Phases | 1 |
| Rated Input Voltage (UIN) | 100 ... 240 V AC90 ... 300 V DC |
| Input Voltage (Uin) | 85 ... 264 V AC90 ... 300 V DC |
| Typical Input Current | (115 V AC) 4.6 A(230 V AC) 2.3 A |
| Hold-up Time | (230 V AC) min. 40 ms |
| Rated Frequency (f) | 50 Hz60 Hz |
| Rated Frequency Limits | 45 ... 65 Hz |
| Characteristic of Output | U/I characteristic curve with power reserve |
| Rated Output Power | 480 W |
| Output Power | 480 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Rated Output Current | -25 °C ... +40 °C 26 A-25 °C ... +60 °C 20 A |
| Output Current | 20 A |
| Output Current Maximum (Iout) | 26 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kVInput Circuit / PE 4 kVInput Circuit / Relay Contact 4 kVOutput Circuit / PE 0.5 kVOutput Circuit 0.5 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 VInput Circuit / PE 300 VInput Circuit / Relay Contact 300 VOutput Circuit / PE 50 V |
| Degree of Protection | Housing IP20Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 2.5 mm²Flexible 0.5 ... 2.5 mm²Rigid 0.5 ... 4 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 2.5 ... 10 mm²Flexible 2.5 ... 10 mm²Rigid 2.5 ... 16 mm² |
| Tightening Torque | Auxiliary Circuit 0.5 N·mInput Circuit 0.5 N·mOutput Circuit 1.2 N·m |
| Wire Stripping Length | Auxiliary Circuit 8 mmInput Circuit 8 mmOutput Circuit 10 mm |
| Recommended Screw Driver | Input Circuit / Output Circuit PH1Input Circuit / Output Circuit 0.8 x 4 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mmElectrical Conductive Board, Vertical 25 mmOther Device Same Type, Horizontal 25 mmOther Device Same Type, Vertical 25 mm |
| Mounting Position | Position 1, 7 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.107.1EN 50581IEC/EN 60950-1IEC/EN 61000-6-2IEC/EN 61000-6-3IEC/EN 61204UL 508 |
Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °CStorage -40 ... +85 °C |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 10-58 Hz, ±0.15 mm; 58-150 Hz, 2g, 10 sweep cycles each axis |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g / 3 shocks / 6 ms |
| Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
| RoHS Status | Following EU Directive 2011/65/EU |
Technical UL/CSA | |
| Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWGFlexible 20-12 AWGRigid 20-10 AWG |
| Connecting Capacity Output Circuit UL/CSA | Flexible 12-8 AWGRigid 12-6 AWG |
| Tightening Torque UL/CSA | Input Circuit 4.4 in·lbOutput Circuit 10.5 in·lb |
Electromagnetic Compatibility | |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kVLevel 4 Contact Discharge 8 kV |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4 | Level 4 Power Supply Port Signal 4 kV |
| Surge Immunity acc. to IEC 61000-4-5 | Level 4 Line-to-Ground 4 kVLevel 4 Line-to-Line 2 kV |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6 | Level 3 10 V |
| Electromagnetic Compatibility (EMC) | Immunity - Class BEmission - Class B |
Classifications | |
| Object Classification Code | T |
| ETIM 5 | EC002540 - DC-power supply |
| ETIM 6 | EC002540 - DC-power supply |
| ETIM 7 | EC002540 - DC-power supply |
| eClass | 7.0 27049002 |
| UNSPSC | 39121004 |
| E-Number (Sweden) | 5213181 |
