XT1 P FP 3p EF
- Produttore:
- ABB
- Prezzo (IVA esclusa)
- € 106.06
- Codice Nuova Elva
- 1SDA068183R1
- Codice produttore
- 1SDA068183R1
- Disponibilità
- Invia RdO

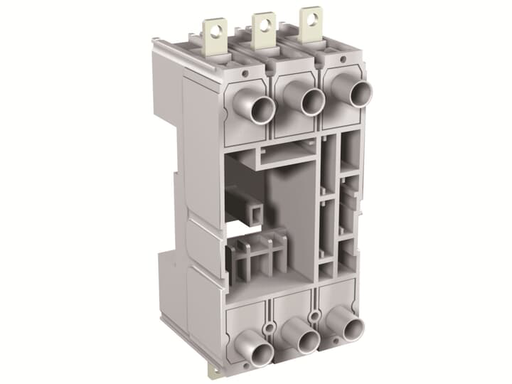

FIXED PART PLUG-IN FOR C.BREAKER TMAX THREE-POLE WITH EXTENDED FRONT TERMINALS XT1
Specifications
Ordering | |
|---|---|
| E-Number (Finland) | 3640546 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 155 mm |
| Product Net Depth / Length | 190 mm |
| Product Net Weight | 0.69 kg |
Container Information | |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Gross Weight | 0.79 kg |
| Package Level 1 EAN | 8015644020804 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 155 mm |
Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | FP |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC500 V DC |
| Rated Uninterrupted Current (Iu) | 160 A |
| Standards | IEC 60947 |
| Sub-type | XT1 |
| Suitable For | XT1 |
| Terminal Connection Type | Plug-In Circuit-BreakersFront Extended |
| Version | P |
Classifications | |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
