Connection mode, measurement range

Temperature head transmitter

The iTEMP temperature head transmitter is a two wire transmitter with an analogue or digital output, measurement input for resistance thermometers, and resistance sensors in 2-, 3- or 4-wire connection, thermocouples and voltage transmitters. The head transmitter can be fitted into a connection head or field housing. Various communication types are available.

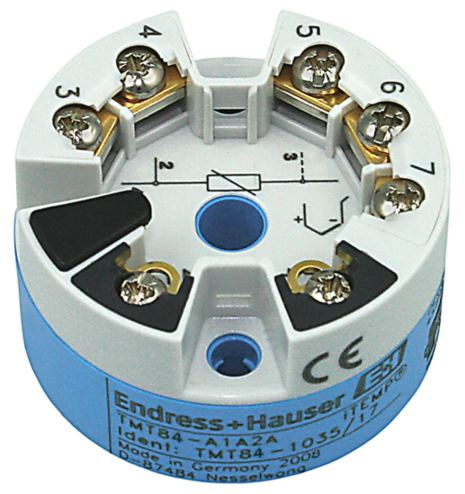

TMT84, Profibus PA

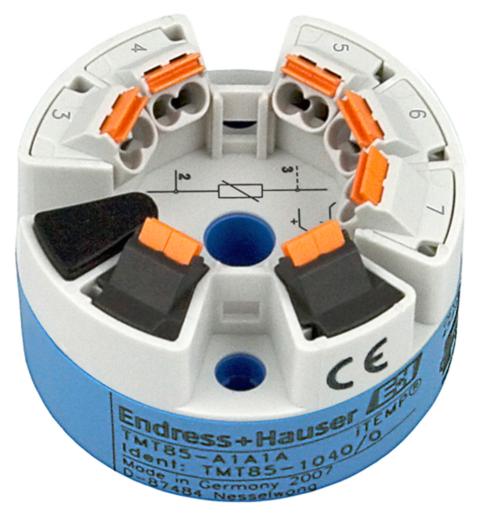

TMT85, FOUNDATION Fieldbus

TMT180 / TMT181, PC-programmable

TMT182, HART

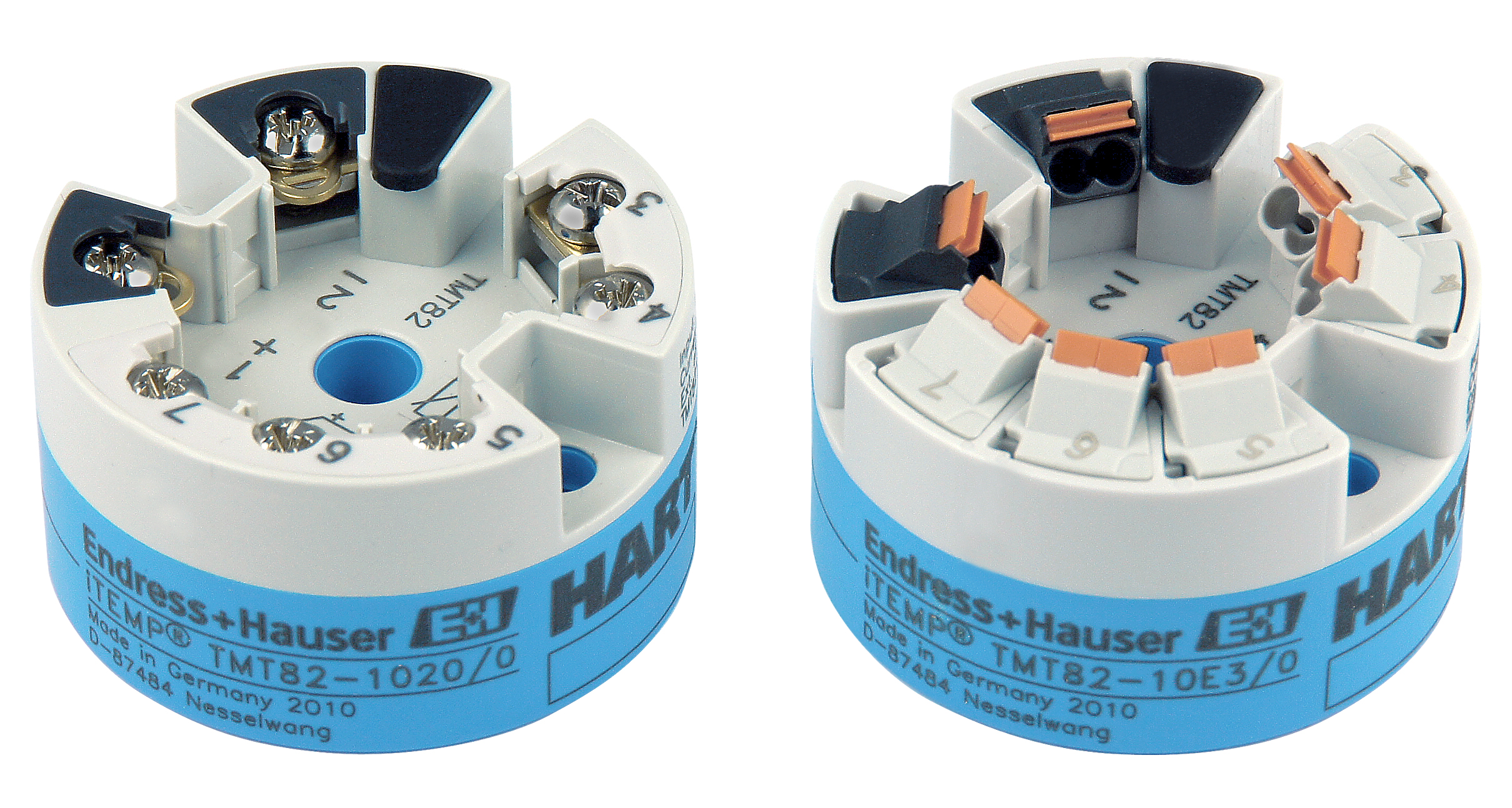

TMT82, HART

Advantages:
- All head transmitters can be mounted into the E+H form DIN B connection heads
- The most used forms of communication are covered
- PC programability-, HART- and PA-head transmitters reduce the stock holding requirement

Modes of communication:

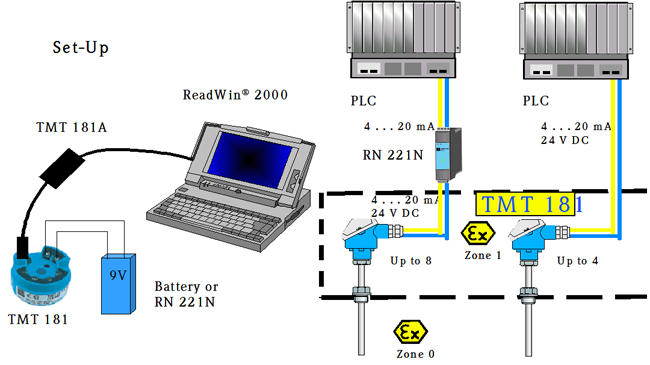

PC communication

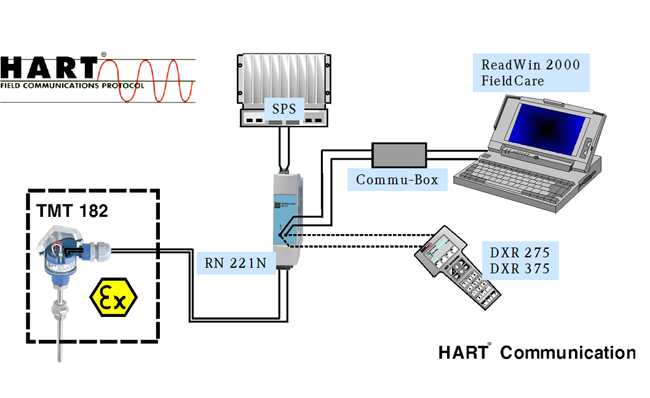

HART communication

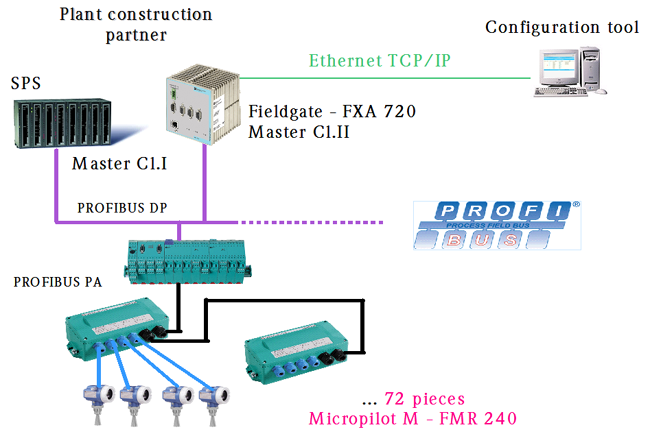

PROFIBUS-PA communication
